How Variable Frequency Drives (VFDs) Enhance Container Gantry Crane Performance

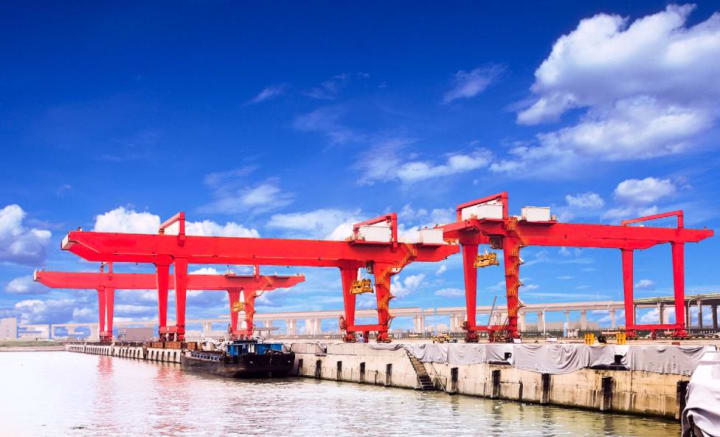

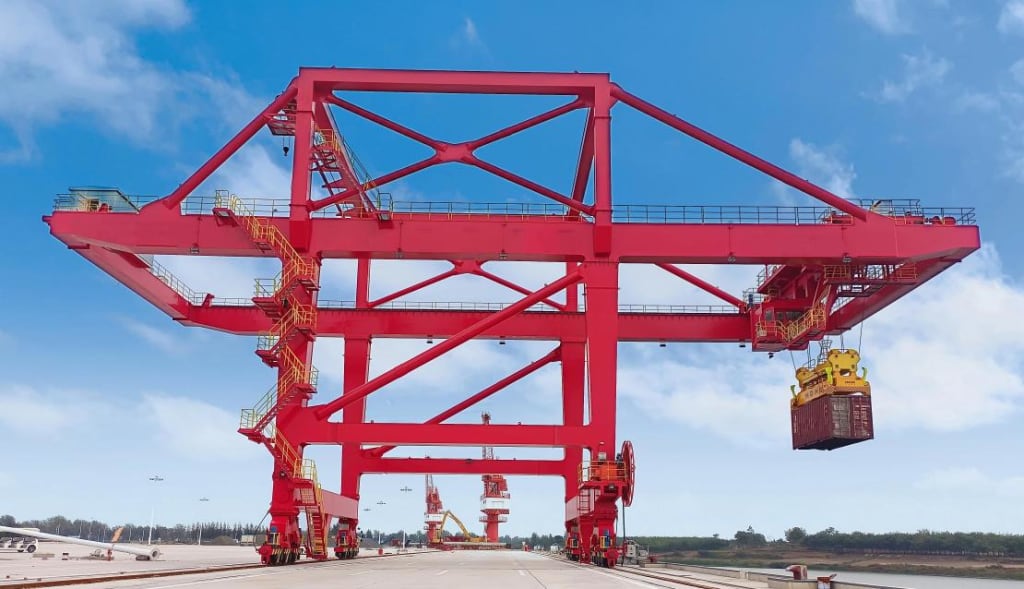

Container gantry cranes are vital pieces of equipment in ports, container yards, and intermodal terminals around the world. They are responsible for lifting, transporting, and stacking heavy containers with speed and precision, ensuring the smooth flow of goods through global supply chains. As containerized cargo volumes continue to rise, operators are constantly seeking ways to improve crane performance, reliability, and energy efficiency. One of the most effective technological advancements in recent years has been the integration of Variable Frequency Drives (VFDs) into container gantry crane systems.

VFDs, also known as adjustable speed drives or inverters, control the speed and torque of electric motors by varying the input frequency and voltage. When applied to container gantry cranes, these devices significantly enhance performance, reduce operating costs, and increase the overall lifespan of the equipment. This article explores how VFDs contribute to the efficiency and reliability of container gantry cranes, covering their key benefits, operational impact, and long-term value.

1. Improved Motion Control and Precision

Container gantry cranes operate multiple axes simultaneously, including hoisting, trolley travel, and gantry travel. Traditional fixed-speed motors often lead to abrupt starts and stops, resulting in mechanical stress and less accurate positioning. By contrast, VFDs enable smooth acceleration and deceleration by controlling motor speed in real time.

Accurate container positioning: VFDs allow operators to fine-tune speeds during final container placement, minimizing the risk of collisions or misalignment with container stacks or trucks.

Reduced load sway: Precise speed adjustments during crane movements significantly reduce load sway, which is a major cause of delays and accidents.

Synchronization of movements: For container handling gantry cranes operating in tandem or lifting heavy or oversized cargo, VFDs ensure coordinated and balanced motion across all motors.

This level of control improves productivity by enabling faster, safer, and more precise container handling.

2. Energy Efficiency and Cost Savings

Energy consumption is a critical factor for container terminals, especially those operating multiple gantry cranes simultaneously. VFDs improve energy efficiency in several ways:

Optimized motor speed: Motors typically consume excessive energy when running at full speed regardless of load demand. VFDs match the motor speed to actual operational requirements, reducing wasted energy.

Regenerative braking: Many VFD systems can convert the energy produced during braking (e.g., lowering a container) back into electrical energy, feeding it back into the power grid or using it to power other equipment. This regenerative capability can lead to energy savings of up to 30-40%.

Lower peak demand charges: By soft-starting motors, VFDs reduce the surge currents associated with starting large motors, which helps decrease peak energy demand and associated utility costs.

The combination of reduced energy consumption and lower demand charges translates directly into significant operating cost savings for terminal operators.

3. Extended Equipment Lifespan

Container gantry cranes are capital-intensive assets, and extending their useful life is a top priority for operators. VFDs play a crucial role in reducing wear and tear:

Soft starting and stopping: Abrupt motor starts and stops place heavy stress on mechanical components like gearboxes, brakes, and couplings. VFDs provide controlled acceleration and deceleration, mitigating these stresses.

Less mechanical shock: Smooth motor control helps reduce the strain on structural components, cables, and bearings, ultimately prolonging their lifespan.

Reduced maintenance requirements: Because VFD-controlled motors operate more efficiently and with less heat buildup, maintenance intervals can be extended, reducing downtime and maintenance costs.

Over time, these benefits help protect the crane’s mechanical and electrical systems, leading to a better return on investment.

4. Enhanced Safety

Safety is paramount in container handling operations. The precision and control afforded by VFDs directly contribute to safer working conditions:

Minimized load sway: Reduced sway improves visibility for operators and reduces the chance of collisions with personnel, trucks, or other equipment.

Controlled braking: Smooth, regenerative braking reduces the risk of uncontrolled movements during emergencies or sudden stops.

Overload protection: Many modern VFDs include built-in diagnostic and protection features that prevent motors from operating under unsafe conditions.

By lowering the likelihood of accidents and equipment damage, VFDs help ensure compliance with safety standards while improving operational confidence.

5. Flexibility and Adaptability

Ports and terminals handle containers of various sizes, weights, and configurations. VFDs provide the flexibility required for such dynamic environments:

Variable speed profiles: Operators can program custom speed settings for different types of lifts or operational conditions.

Adaptable to automation: VFDs integrate seamlessly with automated rail mounted gantry crane control systems, making them ideal for ports adopting advanced automation technologies.

Environmental adaptability: VFDs can be configured to handle different operating environments, including extreme temperatures or high humidity, making them reliable in diverse locations.

This adaptability makes VFD-equipped cranes a future-proof investment for terminals looking to scale or modernize their operations.

6. Data and Diagnostics

Modern VFDs are equipped with sophisticated diagnostic and communication features that provide valuable insights:

Real-time performance monitoring: Operators can track motor load, energy consumption, and operating conditions, allowing for proactive maintenance.

Fault detection: VFDs can log error codes and alert operators to issues before they lead to failures, reducing unplanned downtime.

Integration with IoT systems: Many VFDs can connect to terminal-wide management systems, contributing to broader digitalization efforts.

These capabilities help ports transition toward predictive maintenance strategies, further enhancing uptime and operational efficiency.

7. Environmental Benefits

In addition to economic advantages, VFDs also support environmental sustainability initiatives:

Reduced energy consumption: Lower energy usage means fewer greenhouse gas emissions, especially in terminals powered by fossil fuel-based energy grids.

Lower noise levels: VFDs enable smoother crane operation, reducing noise pollution in and around container terminals.

By improving both energy efficiency and environmental performance, VFD-equipped gantry cranes align with global sustainability goals.

Conclusion: A Strategic Investment for Modern Ports

Variable Frequency Drives have become an essential technology for container gantry cranes, providing a wide range of benefits that go beyond simple speed control. From improved precision and energy efficiency to enhanced safety and extended equipment life, VFDs deliver measurable value to terminal operators.

As container volumes grow and competition intensifies, ports and terminals must maximize the performance of their assets. Investing in VFD-equipped container gantry cranes - or retrofitting existing cranes with VFD systems - can deliver substantial improvements in productivity, cost efficiency, and sustainability.

For terminals seeking to remain competitive in the global logistics industry, integrating VFDs is not just a technical upgrade; it is a strategic decision that enhances crane performance, supports automation, and secures long-term operational excellence.
